After GTX Titan left an enormous space between itself and the GTX 980 in regards to both price ands peed, we all suspected a card such as the Nvidia GeForce GTX 980 Ti was coming. Still,we were not expecting the Nvidia GeForce GTX 980 Ti to be so close to the GTX980’s cost,while an early on matching the GTX Titan X’s speed,making the latter almost redundant. TheNvidia GeForce GTX 980 Ti utilizes the same 28nm GM 200 GPU as the Titan X, however with two of its 24 streaming multiprocessor (SMM) units disabled, leading to an 8per cent reduction in stream processors and texture units,now2,816and176 respectively.Otherwise, it’s business as usual; the 1GHz clock speed(1,075MHzboost),250W TDP and memory subsystem are unchanged. Likewise, the 64-bit memory controllers are retained for a full 384-bit bus with 16 ROPs per controller, there’s a full 3MB of L2 cache and nopartially disabled partitions.The GDDR5 again runs at 7GHz effective for a total memory bandwidth of 336GB/sec. truly the only other difference is the Nvidia GeForce GTX 980 Ti 6GB frame buffer, rather than 12GB. However, 6GB is still enough memory to run 4K games at optimum settings without bottle necking the card before the GPU. The Nvidia GeForce GTX 980 Ti also fully supports Direct X 12 to feature level 12_1,which is where you discover probably the most advanced rendering features, such as conservative raster (for accurate, ray-traced shadows) and volume tiled resources (for better rendering of 3D textures such as for instance clouds,smoke and fire). The card has future-proof screen outputs, including HDMI2 and three Display Port 1.2 connectors, anyone of which can handle a G-Sync display. SLI is also supported all of the way to4-way setups. Meanwhile, power is received via the8-pin and6-pin PCI-E power connectors and delivered through the same 6+2 phase power system found on the Titan X.

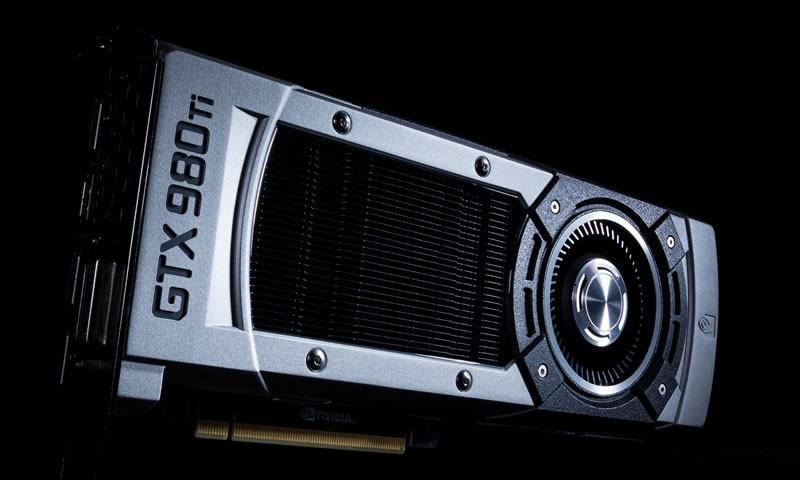

Nvidia has sensibly stuck to its lovely aluminum reference cooler too; the construction is very solid and it looks the part too, although there’s no back plate. A vapor chamber cools the GPU while a metal contact plate cares for the memory potato chips and VRMs. Heat is passed into two aluminum heat sinks,before the vast majority of it is blasted directly out of the rear of your case by the radial fan. Performance you merely need to glance at the performance figures to begin to see the proximity in performance of the Nvidia GeForce GTX 980 Ti and TitanX. Across 2,560×1, 440 and4K, the GTXTitanX is 4 per cent quicker than the Nvidia GeForce GTX 980 Ti on average a huge difference you are never prone to notice. Even in Alien: Isolation at 2,560×1440, where the Titan X’s minimum framerate is 11per cent higher, both cards are running therefore fast here that you wouldn’t spot the difference. In turn, the Nvidia GeForce GTX 980 Ti is a head of the GTX 980by ahealthy29per cent when taking the average for the game results,and a head of theR9290Xby42per cent. For 2,560×1,440 gaming, the Nvidia GeForce GTX 980 Ti’s minimum frameratesexceed60fps in all but one of our games, Crysis 3,wherethe53fpsminimumis still smooth. Even4Kis managed well, thanks tothe980Ti’s fast memory subsystem and large frame buffer. Again, in every game except Crysis3, it stay swell above 30fps–we’re finally seeing cards that can handle 4K with maximum or close to maximum details by themselves. In Crysis3, the 26 fps minimum passes also our theoretically playable test, and is still a great result that matches compared to the Titan X. Energy consumption is completely in line with the Titan X too.The fact you could run games this fast in a PC that draws less than 400W through the mains is testament to Maxwell’s outstanding efficiency.The cooler runs louder thanontheGTX980, and is clearly audible, but it will only be a distraction if you have your visuals card positioned very close to both you and your gaming sound is set to a low amount.
The Nvidia GeForce GTX 980 Ti is a great overclocker too.We added 250MHz (25per cent) to the base clock,which saw it frequently boosting to over 1.4GHz in games.We could additionally boost the memory clock by 14per cent to around8GHz powerful.As a result,performance leap up significantly,with the new 33 fps minimum in Crysis 3 being a real highlight. Whenever the Titan X is also overclocked,both cards perform near enough identically – another win for all the GTX 980 Ti.
The Nvidia GeForce GTX 980 Ti is an effective pre-emptive attack against AMD,which during the time of publication nevertheless hasn’t released its R9300series.The pricing is fair too; it’s 30per cent quicker than aGTX980 and about 30 per cent more high priced. It’s still costly,yes, nevertheless the performance advantage is similarly massive.The card can also be future-proofwithDX12,HDMI2 and G-Sync help aswell as a6GBframebuffer, and the overclocking potential is outstanding. Nevertheless, Nvidia has also dealt a blow to its own Titan X. Effectively,Titan X purchasers are now paying £300 for 6 GB of GDDR5, making a bitter flavor in the mouths of early adopters. It does mean AMD has a hardcore challenge to fightback. Hopefully, cutting prices will not be the red team’s only weapon against Nvidia,and performance alone will likely be sufficient to bring straight down costs generally. If you need great high-resolution gaming performance on a single-GPU for a respectable price, the Nvidia GeForce GTX 980 Ti is currently the king of the castle.However, if possible,were commend waiting to see the impact of AMD’s R9 300 series before buying straight now.
